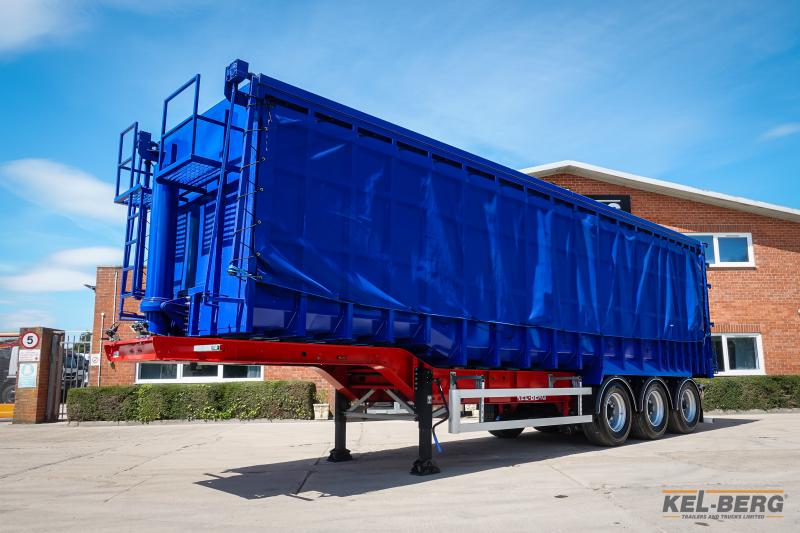

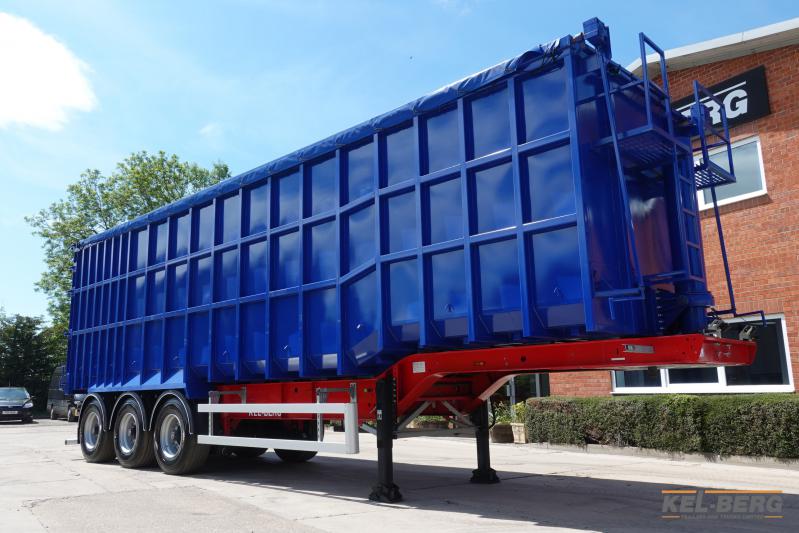

New Kel-Berg 75ył Stepframe Scrap Trailer T25-7025
- 2 Years chassis warranty
- Proven design
- High tensile lightweight steel stepframe chassis
- Choice of Disk or Drum brakes
- EDBRO RAM
- PM Weigh system
- KTL anti corrosion coating
- HELLA lighting system
- In Stock

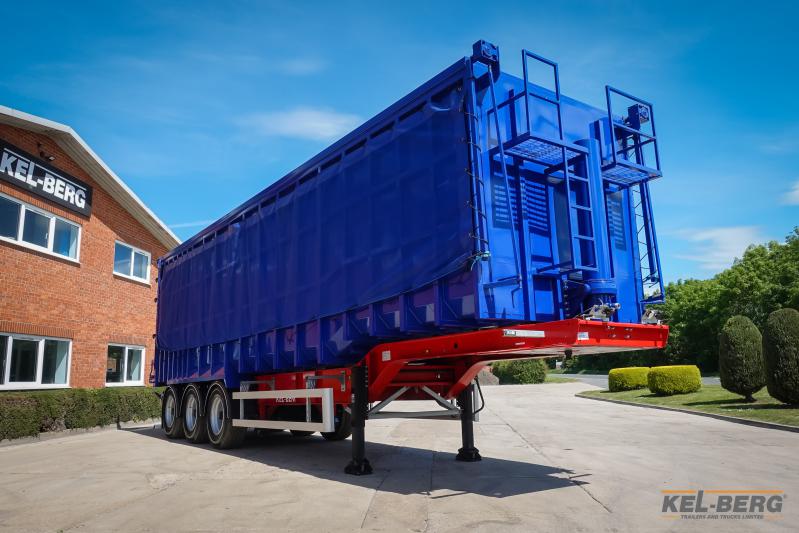

75y³ Stepframe Scrap Trailer T25_7025
Bogie Design Weight: 27000kg
Kingpin Design Weight: 16000kg
I-beam profiles in Quality high tensile steel at 1300mm centres for improved stability. Cross members are also in high tensile steel U-section profiles. The total concept gives a strong and flexible chassis. Retractable under run bumper, Aluminium side guards fitted both sides
Chassis is shot blasted to DIN standard. Primed using I.C.I two pack primer. Finish paint is gloss RAL3020 red / I.C.I two pack paint system.
The chassis has a KTL anti corrosion coating applied prior to the top coat being applied
We offer the following three choices of axle manufactures.
Daimler Chrysler/JOST DCA TE5/8KC7-9 the compact axle beam gives the axle series the name with a durable lightweight compact axle which integrates the trailing arm, 430mm disc brakes complete with maintenance free cartridge bearing.
SAF INTRADISC plus INTEGRAL 9 ton on/off road use, The INTERGRAL is a two-piece brake disc that is manufactured by compound casting from different materials, which is gentler on the material prolonging the service lift of the pads and disc.
BPW HSF 9010 – 15 ECO Off road axles. The square axle beam is optimally adapted to the total forces offers arising such as bending and torsional loads. It also has inherent low weight combined with extreme stability and the greatest reliability.
Air suspension with raise and lower valve
2 line air pressure system with Knorr EBS, Electronic brake system.
Spring brakes on 2 axles. ABS sensors on two axles, C and CA couplings mounted on chassis front. Park and shunt valve
24 volt HELLA lighting system. 2 off per side Hella 3-chamber lights. 1 off each Hella fog light and reverse light. 2 off Hella number plate light. 2 off Hella end outline marker lights. 2 Hella front marker LED lights mounted on chassis. Hella side marker LED lights fitted to C & U regulation.Rear marker plates and reflectors. 2-7 pin ISO plugs and 1 ABS/EBS plug mounted separately.
6 off Premium Radial 385/65R22.5. Wheels are steel 120 mm off set 11.75 x R22.5. Natural Finish.
6 off high quality plastic wings mounted on bolt on wing stays with 2 mud flaps.
2 off Jost modular E 300 low maintenance with rocker feet and 2 speed gearbox.
EDBRO CS tipping ram is fitted to the front bulkhead
Tipping ram finished in chassis colour
The body is made from Hardox with the following dimensions:
70x70x3.5mm box section under the body
100x100x6mm top rail

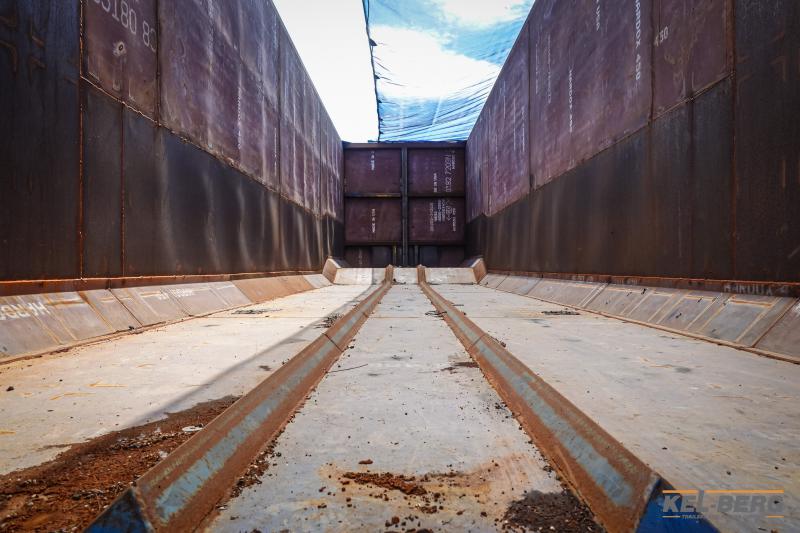

2 off 70x70x6mm angles in the floor
The floor is all made out of Hardox 450
Floor is 5mm with a 2 meter 6mm rear piece
Corners and upto the 1st side rail is 4mm and the rest of the side to top rail is 3mm
The back 1200/1500 top to bottom is 4mm
The headboard and rear door is 3mm

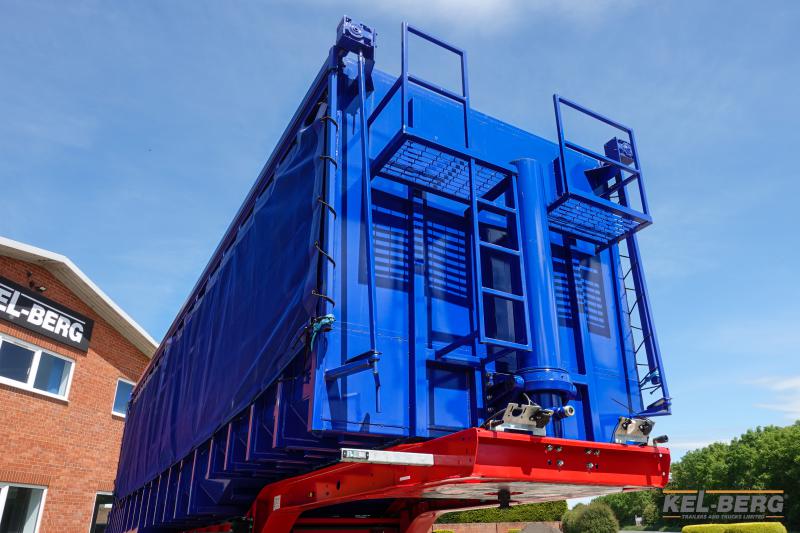

Gantry to front of body for health and safety reasons

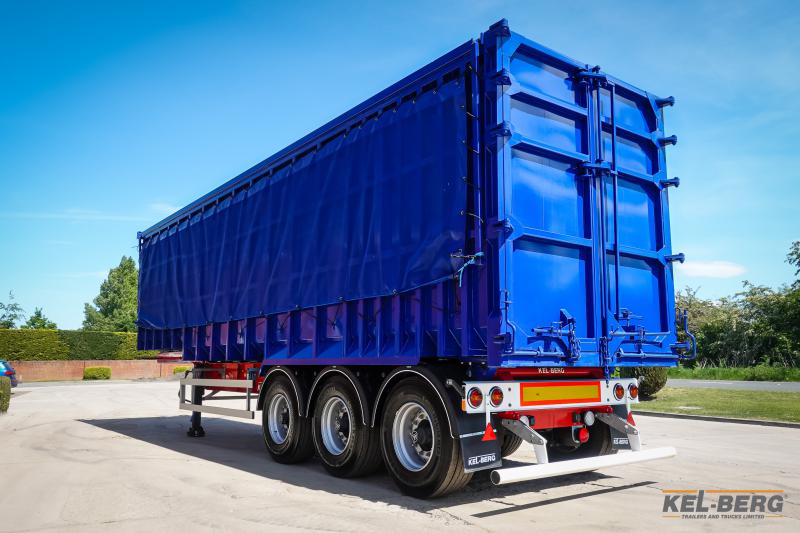

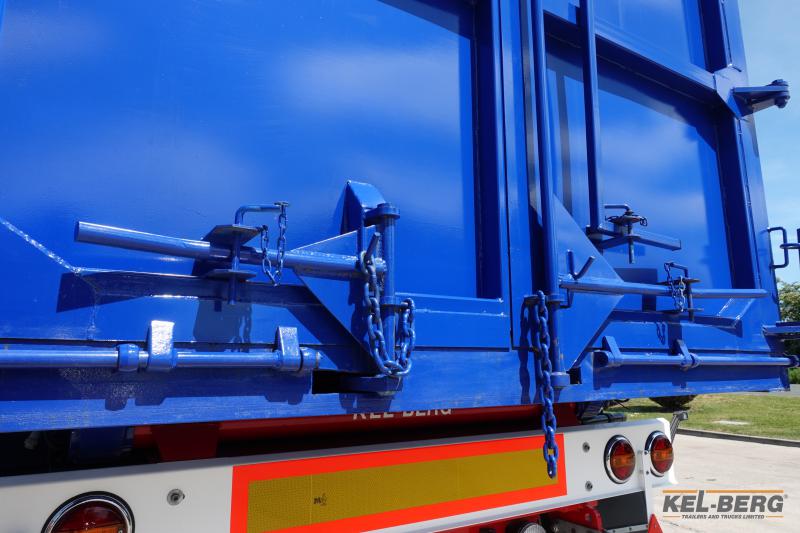

Rear door as 2 locking hooks and 2 locking handles
Body is finished in single top coat, air dried.
Kel-berg designed their trailers to incorporate a wider than normal main rail centres of 1300 mm which gives improved stability while tipping.

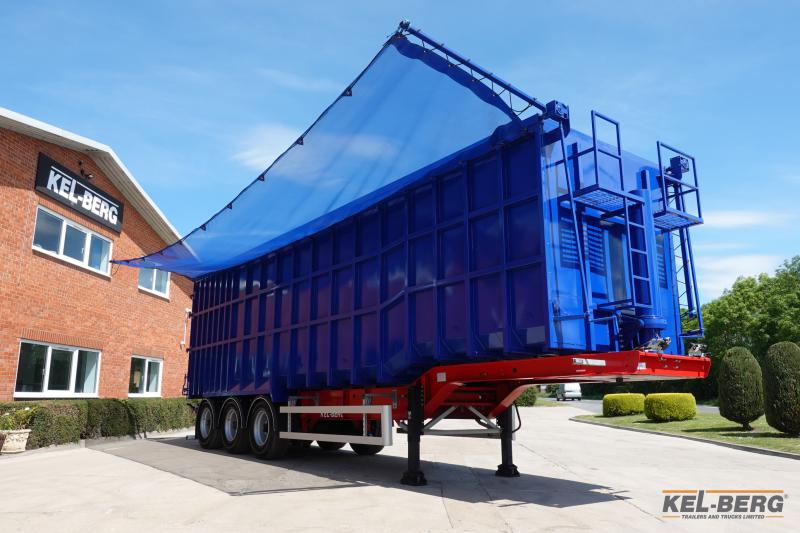

Front to back flip sheeting system

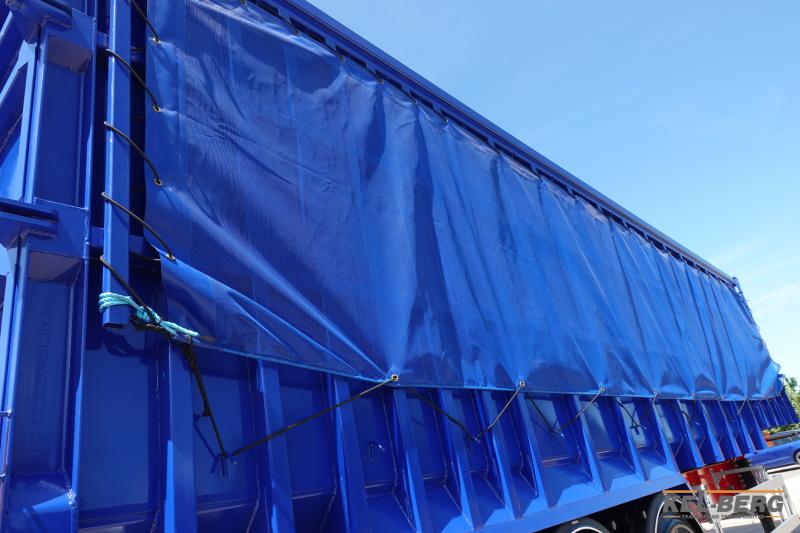

Single opening piece side sheet
Gull wing dual opening , ( either electric on manual winging handles)
Side name boards for either side and rear of trailer
ALCOA aluminium wheel rims
24 month on chassis and body for cracks.
36 Month on tipping ram.
