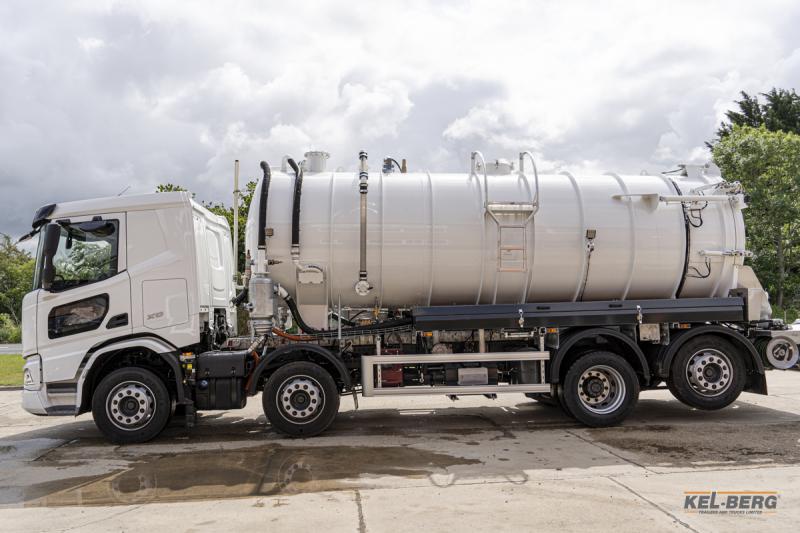

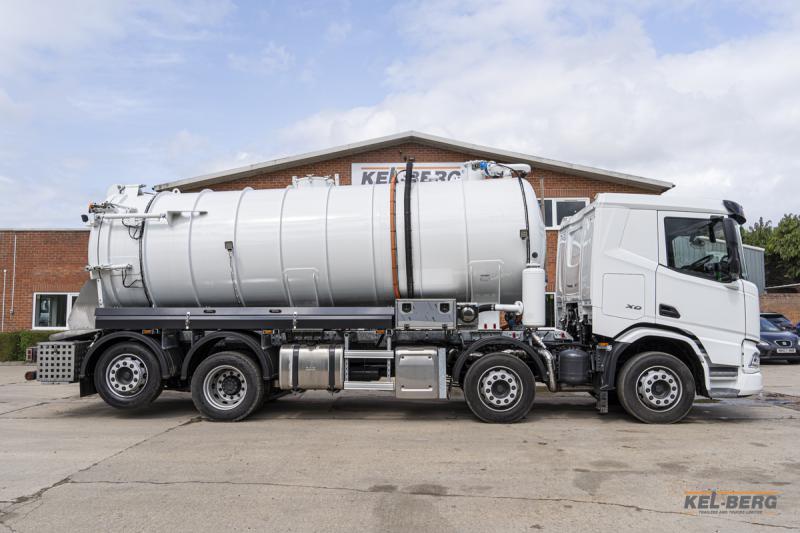

New DAF CF 450 FAX Whale Non-Hazardous Vacuum Tanker

• 449bhp MX11 engine

• 390 Litre steel fuel tank

• Automated gearbox, TraXon, 12 speed

• 3 years warranty

• 2 years complete

• 3rd year driveline

Fitted with:

Whale Non-Hazardous Vacuum Tanker



  • New
  • In Build
  • Various finance packages options
  • Available in your livery
  • Service & R&M packages available
Download spec sheet Enquire Now
Make/Model

DAF CF450 FAX 8x2 rigid construction

Wheelbase

5700mm

Engine Size & output:

Engine MX-11, multi torque 6 cylinder diesel engine, 10.8 litres. Output 330 kW (449 hp) at 1600 rpm. Maximum torque 2300 Nm at 900-1125 rpm.

Chassis Details:

Wheelbase 6.40 m / rear overhang 2.80 m.
Side member height 310 mm, thickness 8.5 mm. Full length inner reinforcement.
Standard location of chassis components.
Horizontal exhaust discharge at the side of the DPF/SCR unit via a low exhaust diffuser.
DPF and SCR unit positioned behind second front axle at the right-hand side of the chassis.
Air tanks steel.
Steel fuel tank 390 litres at the right-hand side, height 580 mm.
Fuel tank at the right-hand side of the chassis.
Temporary rear light brackets.
Spray suppression in the mudguards, according to directive 91/226/EEC.
Front underrun protection (FUP), according to EU directive 2000/40/EEC.
AdBlue tank 45 litres at the left-hand side of the chassis.
Horizontal battery box at the left-hand side. No spare wheel carrier.

Wheels & Tyres:

First front axle: tyre size 315/70R22.5, wheel size 22.5 x 9.00.
Second front axle: tyre size 315/70R22.5, wheel size 22.5 x 9.00.
First rear axle: tyre size 315/70R22.5, wheel size 22.5 x 9.00.
Second rear axle: tyre size 315/70R22.5, wheel size 22.5 x 9.00.
Supplier Goodyear.
Steel disc wheels, silvergrey.
Wheel protection rings with open centre section, colour silver-grey (RAL 9006).
First front axle: tyre size 315/70R22.5, Goodyear type KMAXS, load index 156/150, speed index L, application Steering - Regional. Tyre label: rolling resistance C - wet grip B - noise 72dB(A).
Second front axle: tyre size 315/70R22.5, Goodyear type KMAXS, load index 156/150, speed index L, application Steering - Regional. Tyre label: rolling resistance C - wet grip B - noise 72dB(A).

Brake System:

MX Engine Brake. Hydraulically operated compression brake assembly integrated in the valve rocker group. The MX Engine Brake works simultaneously with the exhaust brake, resulting in a high combined braking power available at low engine rpm.
Park brake control.
Ventilated disc brakes front and rear. Dual circuit air system with electronic control (EBS). Twin cylinder air compressor with heated dryer and economy mode.

Axles & Suspension:

Front axle type 163N, 100 mm vertical offset. Parabolic leaf suspension with shock shock absorbers and stabiliser. Max. load 2x 8.0 tonnes

Air suspended driven rear axle and steered trailing axle. Driven single reduction axle type SR1344 with 4 air bellows, max. load 11.5 tonnes. Steered axle with 2 air bellows, max. load 7.5 tonnes. Mechanical differential lock.

Lifting device for the steered trailing rear axle.

Axle load limiter 11.5 t.

Cab exterior:

Space Cab with galvanised steel bumper, tinted glass and electric window openers. Main mirrors and wide angle mirrors electrically heated. Cab width 2300 mm.
Maintenance free 4-point mechanical cab suspension with integrated shock absorbers.
Translucent external sun visor above the windscreen, colour green.
Rigid first cab entrance step with anti-slip tread.
Bi-reflector halogen head lights with impact-resistant Lexan lens.
Head light beam for left-hand traffic.
Daytime running lights with four LED's at each side, integrated in the head light units.
Bumper mounted light units with combined fog light and cornering light function.
Two hazard beacon lights on the cab roof.
Electrical adjustment of the main mirrors and the wide angle mirrors.
Front view mirror to comply with EC directive 2003/97/EC for frontal field of view.
Central door lock system with exterior light check function. Includes 2 remote control units with integrated snake blade key with flip mechanism.
Telescopic windscreen wiper and ice scraper for easy cleaning of the windscreen and the side windows.

Cab interior:

Right-hand drive.
Steering wheel black, soft grip finish in black colour.
Cab interior trim colour Dark Sand.
Cab interior decoration Black Rock.
Cab wallcovering textile with sound absorbing inner lining.
Air suspended driver seat - Comfort Air. High backed seat. Upholstery Flash Copper for the seat facing, Thunder for the borders and Rustico for the edges.
High backed basic, fixed co-driver seat. Upholstery Flash Copper for the seat facing, Thunder for the borders and Rustico for the edges.
Seat belts black.
Sleeping compartment with lower bunk raised 250 mm above the engine tunnel. Storage facilities under the bunk, at upper level: 3 open boxes (total volume 260 litres) accessible with tilted bunk. At lower level: airtight box 85 litres with external hatch (left-hand side) and storage box 85 litres accessible with tilted bunk (right-hand side).
Lower bunk with standard, foam mattress.
Curtains along the windscreen and the side windows. Includes curtains for additional side and rear windows, if specified.
Cab climate control automatically controls cab temperature, blower, air distribution and air conditioning.
Water-to-air 3.8 kW auxiliary cab heater with residual heat pump. Control panel with 7-day timer.

Stoneridge or VDO Tacho Fitted

System Control:

Advanced Whale Plc controller with diagnostics display screen.

Tanker:

Tank Material:

Material is Carbon Steel to specification BS EN 10025 S275 J2

Tank Ring Material:

50mm x 10mm Carbon Steel Stiffening Rings

Internal Finish/Coating:

Self Colour - Natural Finish

Shape/Thickness:

Cylindrical / 5.00mm

Specific Gravity:

1.0

Contents:

Sewage and other non-hazardous sludge's.

Nominal Capacity:

4200 Gallons Total - 200 gallons Clean/4000 gallons Dirty

Fixed Body Flexi Mountings:

Fixed Body Attached to Chassis by Flexible Mountings - No Tipping

Fall over length:

Minimum of 2 Degree Slope

Mountings:

Tank Body is attached to the Chassis with Flexible Mountings

Subframe:

Full length subframe if required by chassis manufacturer

Baffles:

2-off anti-surge walk through type

Front End:

Torispherical dished and flanged to PD5500

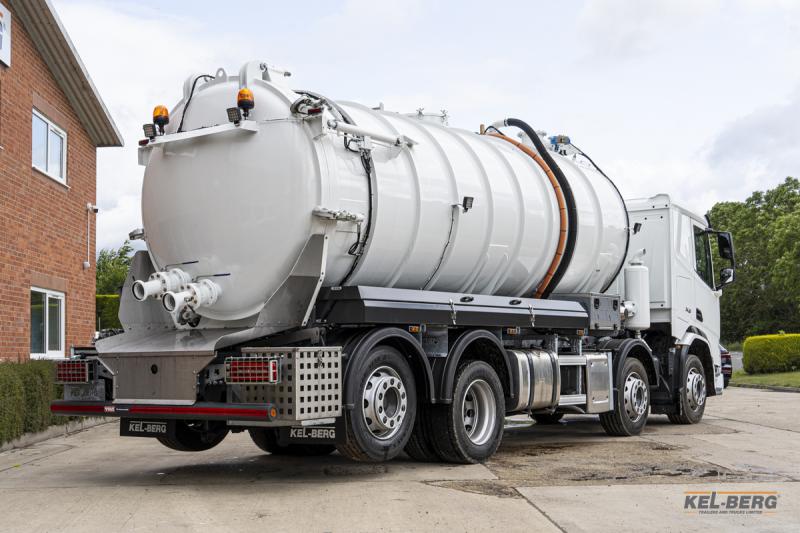

Rear Door:

Hydraulic operated torispherical door with Rear Debris chute for ease of operation when unloading

Type of Door Clamps:

Hydraulic operated door clamps with control on nearside

Tank Top Manhole:

1-off 460mm dia. 6 clamp Carbon Steel tank top manhole with access ladder & platform

PRV:

Tank-top Whale patented PRV, piped to ground with cable pull

PRV:

In-line Whale PRV, PTFE components locked, sealed & set - piped to ground

Gauges:

Combined vacuum pressure calibrated in working pressure & vacuum

Sight Glass:

Full length 3" dia. acrylic sight glass with cleaning & rodding access

Outlet Valve:

4" lever operated ball valve

Valve position:

Mounted in base of rear door/dish

Seal Breaker Valve:

25mm diameter valve fitted in pipework between valve and hose connection on outlet valve

Inlet Valve:

4" lever operated ball valve

Valve position:

Mounted in base of rear door/dish

Seal Breaker Valve:

25mm diameter valve fitted in pipework between valve and hose connection on inlet valve

Internal Stack Pipe:

Fitted to Inlet Valve c/w splash plate bolted type to 4 off angle brackets fully welded to the tank

Overspill Valve:

80mm air operated valve interlinked to PTO

Vent Valve:

65mm air operated valve interlinked to hand brake

LOW VOLUME JETTING

Divisions:

One to give 200 gallons water compartment with 20" bolted access plate

Sight Glass:

2" diameter full depth acrylic sight glass in front compartment.

Water Intake / Hydrant Filler:

Approved no back syphon hydrant filler - std 2.1/2" quick coupling

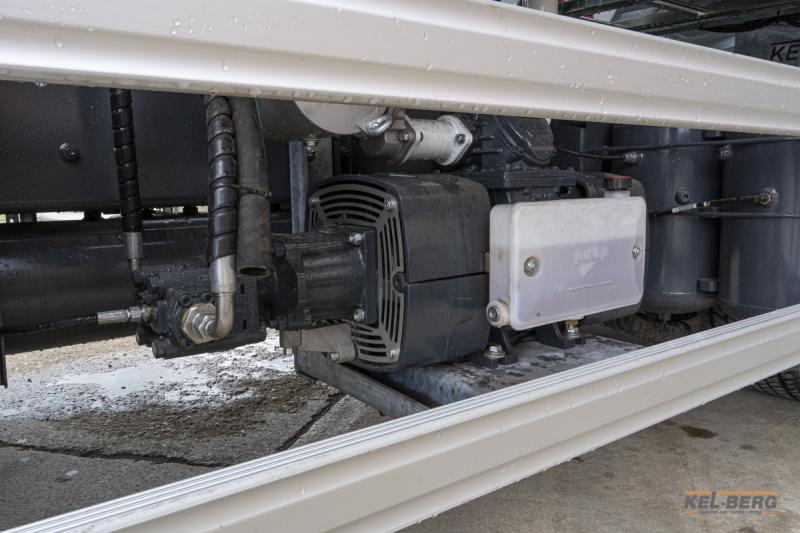

Jetting Pump:

ORCA 170 high pressure pump

Performance:

10 gpm at 2000psi

Jetting Pump Supply:

200 gallon fresh water compartment

Pump Drive:

Hydraulic

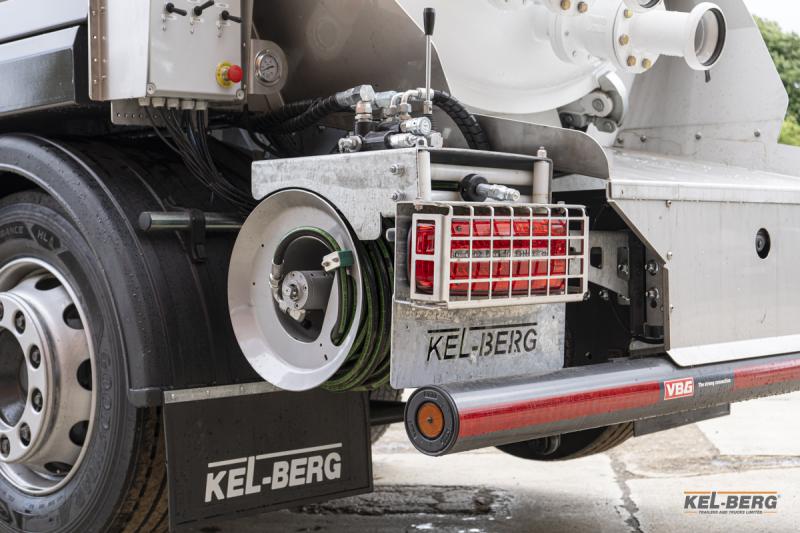

Hydraulic Hose Reel:

Hydraulically-operated reel on nearside including free wheel facility with high pressure hose

Hose Reel Position:

Fitted on the Nearside at the Rear and facing the Rear

Jetting Hose:

30m of 1/2" diameter Jetting Hose

Equipment:

Standard Low Volume Jetting Kit :- Forward facing & retro nozzles, 1m hand lance with fan and needle nozzles

Protection:

Low water warning device with automatic water-dumping circuit

VACUUM SYSTEM:

Exhauster:

Mistral 701 series exhauster / compressor. Output 345 cfm Free Air

Drive:

Mechanical with automatic engine speed setting

Cut-off:

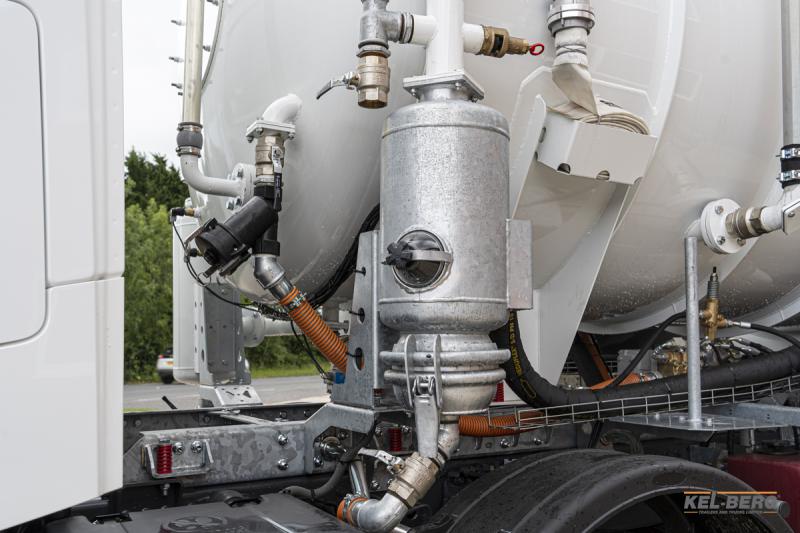

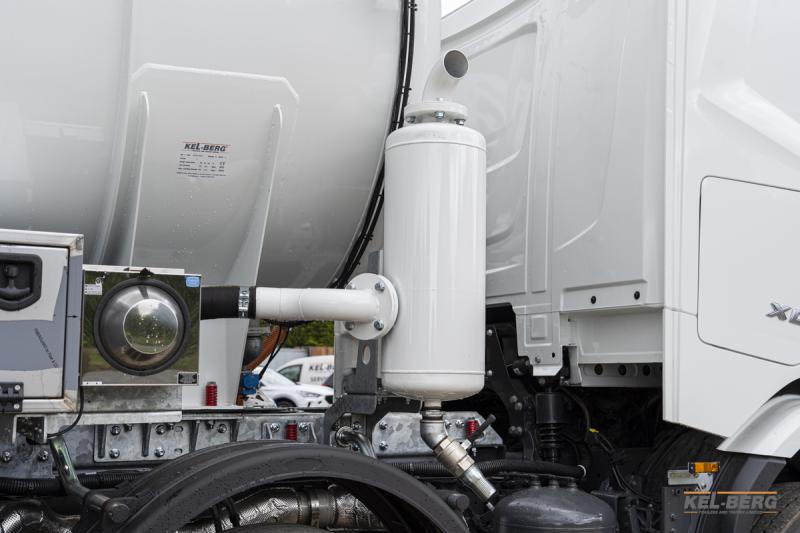

Primary and secondary overspill canister with cut-out & 1 1/2" drain

Protection:

External ergonomic controls fitted at operator workstations. Air operated changeover for vacuum or pressure selection, on nearside

Control:

External ergonomic controls fitted at operator workstations. Air operated changeover for vacuum or pressure selection, on nearside

Hose Storage:

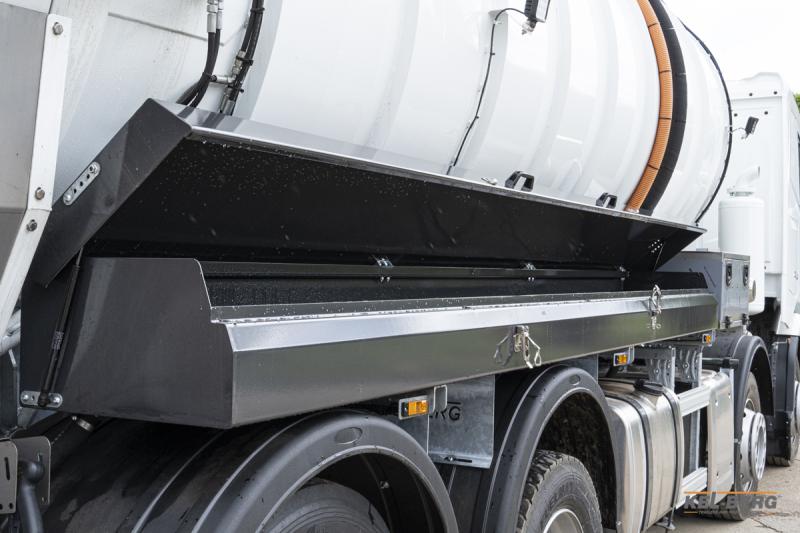

Maximum length hose tray with tank protection strips and hose straps in Carbon Steel both sides

Cone Spike:

Cone spike to take 6 off 750mm high cones (Motorway use)

Stainless Steel Locker:

Stainless Steel Locker 800mm x 400mm x 350mm (Standard)







Additional Items:

1 off extra 24 volt Amber Beacon LED Type and Integral Branch Protection

2 off 24 volt Worklight LED Type

Reversing Camera with 7" Colour Flat Screen monitor fitted in Cab. (2 year OEM Manufacturers Warranty)

Audible reversing bleeper

Electrically heated handwash unit

Hour Meter on Vacuum Pump for Running Time - (WHALE PLC)



Chassis cab: Warranty Plus 2 Year Vehicle & 3 Year Driveline - takes care of all warrantable repairs on the vehicle for two years and on the Driveline for a third year together with associated breakdown coverage.
