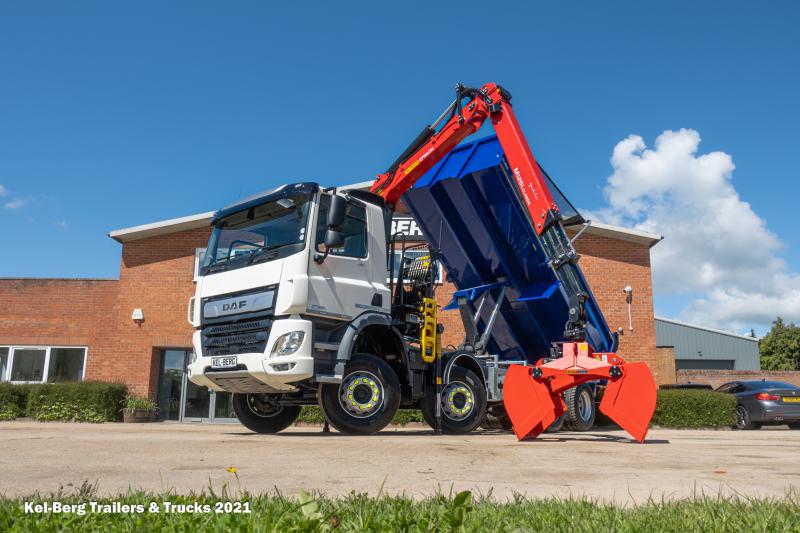

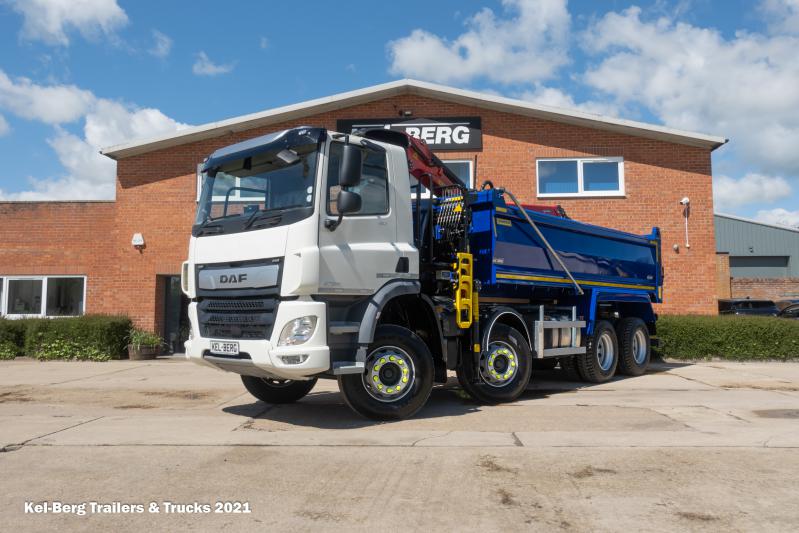

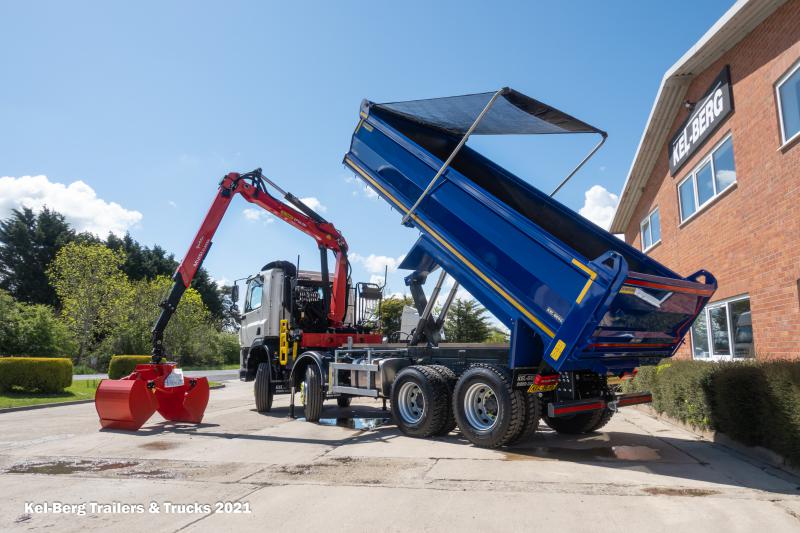

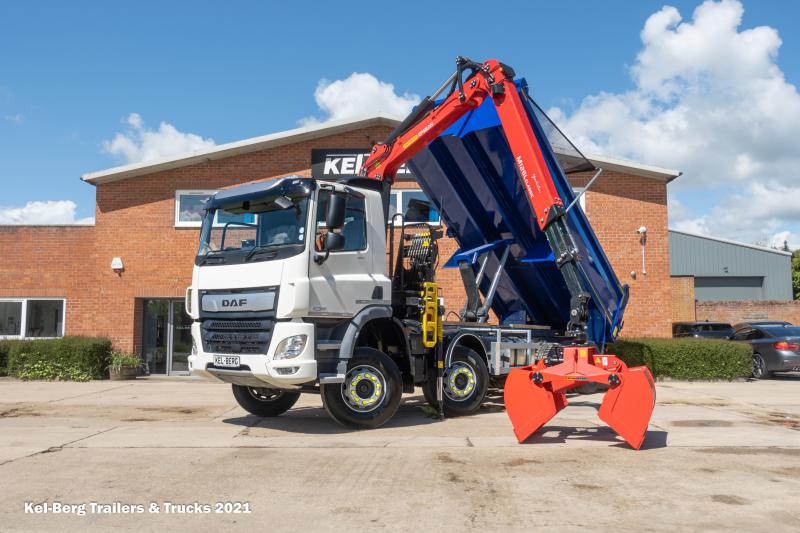

New DAF CF 440 FAD 8x4 day cab, grab loader, Thompson body, Epsilon M125 crane

• Main and wide angle mirrors heated

• 340 litre alloy fuel tank

• 8 speed gearbox c/w rear diff locks

• Daycab c/w driver air seat

• Air con & sun visor

• Front LED day running lights

• Dual stand up controls

• Kinshoffer 500L bucket

• 14 m3 Thompson Loadmaster body

• Edbro TS26 tipping gear

• Optional extras; beacon bar, reversing camers, sheeting system.



  • New
  • In Stock
  • New & Unregistered
  • Available in your livery
  • Various finance packages options
  • Service & R&M packages available
Download spec sheet Enquire Now
Make / Model

DAF CF440 FAD 8x4 rigid construction

Wheelbase: 5700 mm
Engine size & output:

MX-11, 6 cylinder diesel engine, 10.8 litres output 435 hp, basic engine immobiliser system

Gearbox:

Manual 8 speed, manual overdrive gearbox type 8S2200, ratio 11.54-0.84.

Chassis details:

DPF and SCR split unit located at the right-hand side of the chassis. DPF behind the first front axle, SCR with discharge behind the second front axle. 340 alloy fuel tank, no spray suppression fitted. Chassis paint finished in Grey, AdBlue tank 50 litres at the left-hand side of the chassis.

Wheels & Tyres:

Front axles: tyre size 295/80R22.5, wheel size 22.5 x 8.25. Rear drive axles: tyre size 295/80R22.5, wheel size 22.5 x 8.25

Brake System:

Ventilated disc brakes at front, rear tandem axle with drum brakes. Dual circuit air system with electronic control (EBS), exhaust brake & mechanical differential lock.

Axles & Suspension:

Two front axles, type 167N. Vertical offset 20 mm. Normal parabolic leaf suspension with shock absorbers and stabiliser. Max. load 2 x 7.1 tonnes. Rear trapezium leaf suspension, double driven tandem axles type SR1132 with single reduction, Max. load 2 x 9.5 tonnes. Mechanical cross-axle and inter-axle differential locks.

Cab exterior:

Day Cab with galvanized steel bumper, tinted glass and electric window openers. Main mirrors and wide angle mirrors electrically heated, cab width 2300 mm, mechanical cab suspension. Central door lock system with exterior light check function, remote locking, LED daytime running lights, translucent external sun visor, rear cab window.

Cab interior:

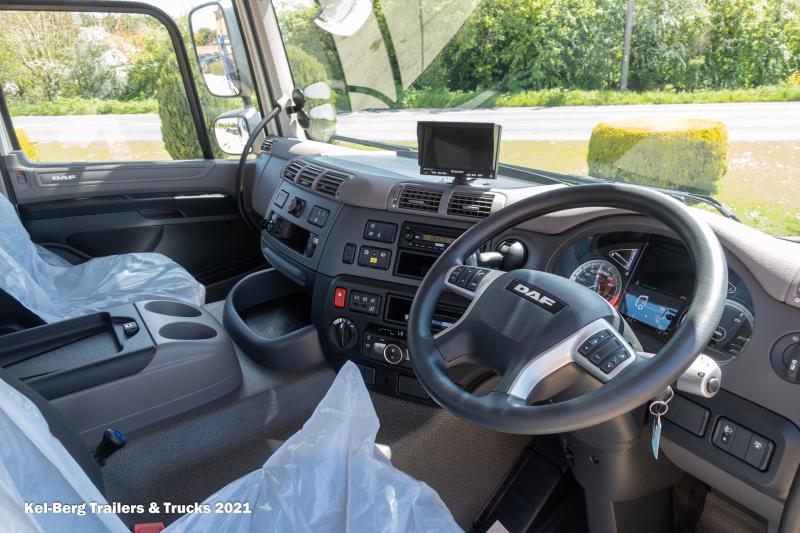

High backed seat air suspended driver seat, Automatic Temperature Control (ATC) and air conditioning, basic radio/USB player. Speaker system with 2 speakers, cruise control, tinted glass & electric windows

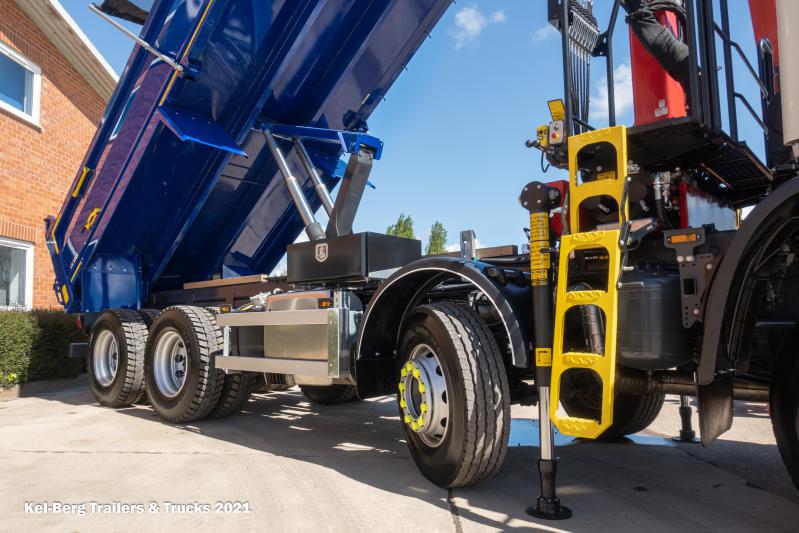

Body details:

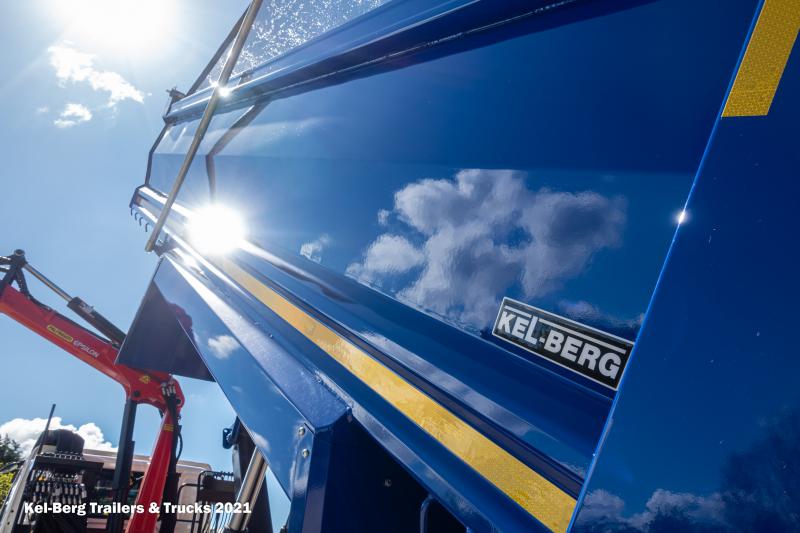

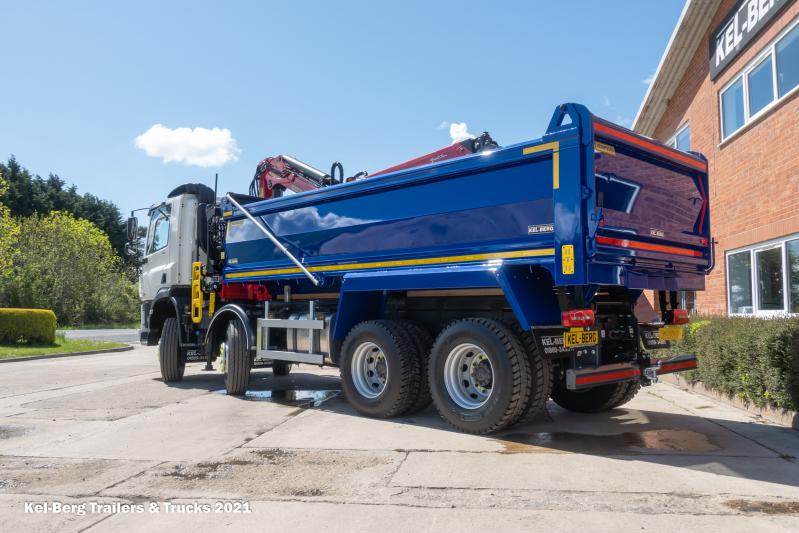

Thompson steel Loadmaster 13 m3 cubic meter double skin body, 150 mm raised headboard, 5mm Hardox 450 flat floor, fixed sides with single V pressing and 3 mm S355 steel internal liner, side panel material with 3 mm S700 front and rear side posts are fixed. The underside of the body has rope hooks fitted, access steps fitted to O/S side of the body. Front bulkhead is plywood lined with shovel and rack. 2nd steer and rear axle mud wing are mad from mild steel and are removable wings with flaps. Truck manufacturer rear lights to be used

The steel sub-frame is welded together and finished to match chassis colour. The side guards are fitted to the sub frame.

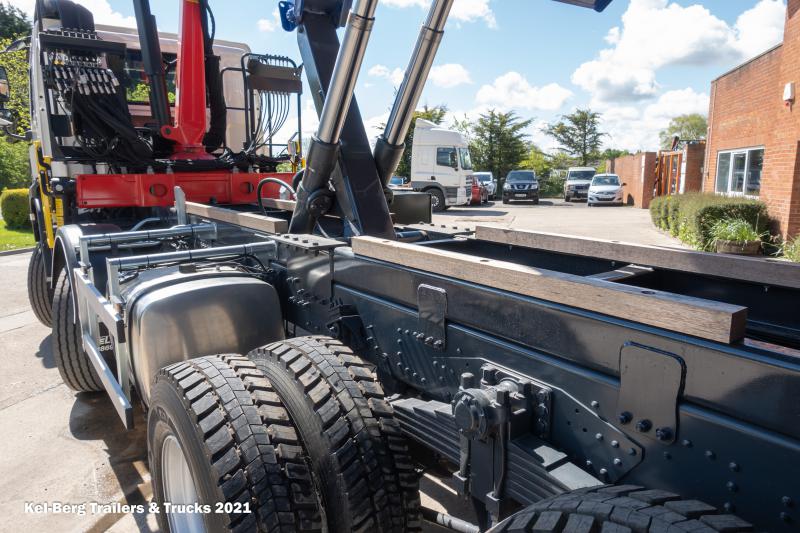

Tipping gear:

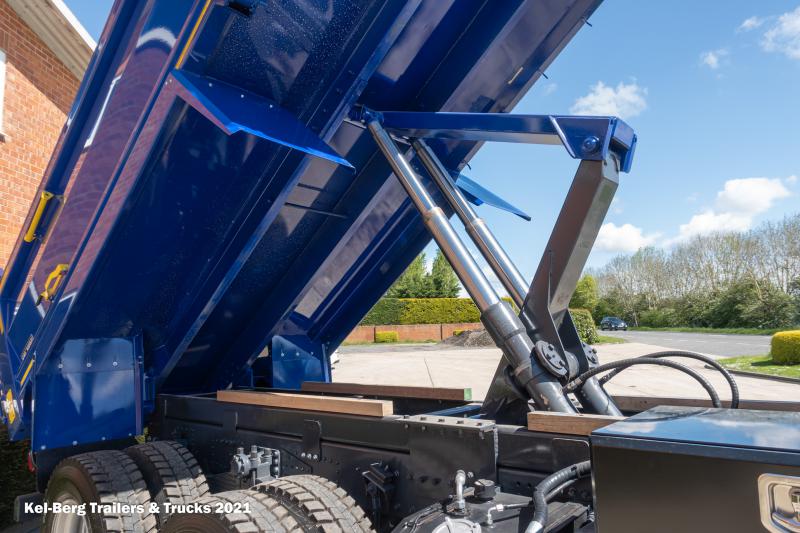

EDBRO TS series. The high tensile steel stabilising frame within the TS effectively absorbs side loads imposed by the chassis during tipping whilst protecting the cylinders from side load. With 50% more torsional stiffness than comparable units, the TS provides ultimate stability for the safest tipping in even the most demanding operating conditions.

Crane details:

Palfinger Epsilon M125 LC82 crane. Dual stand up controls with cable controls on drivers side. Double access catwalk and platform finished in black. Double boom extension with BK057 4.5t rotator, Kinshoffer KM602 500L clam bucket with lifting hooks, two fixed stabiliser legs, ground controls fitted to the off side. Main cylinder protection guard, rubber bump strip on outer boom. 2 spot lights, emergency stop & load hold valves on the main cylinder. Rated capacity indicator with LED for 50% 75% and 100%. Invisible safety case around the operator’s position. The crane is finished in KTL primer and painted in RAL 3020 red powder coating.

  • Roof mounted beacon bar (choice of bulb or LED)
  • F&R amber LED strobe lights
  • Reversing cameras
  • Brigade 4 way camera system c/w 1 terabyte HD & GPS location trace
  • Cycle side scan system with audible left turn warning announcement
  • Under body steel tool box
  • Chapter 8 graphics
  • Sheeting systems (side to side or flip front to back)
  • Weighing systems (In cab or chassis mounted display)
  • Air operated auto rear door
  • Plus many more…..

Chassis cab: Warranty Plus 2 Year Vehicle & 3 Year Driveline - takes care of all warrantable repairs on the vehicle for two years and on the driveline for a third year together with associated breakdown coverage.
