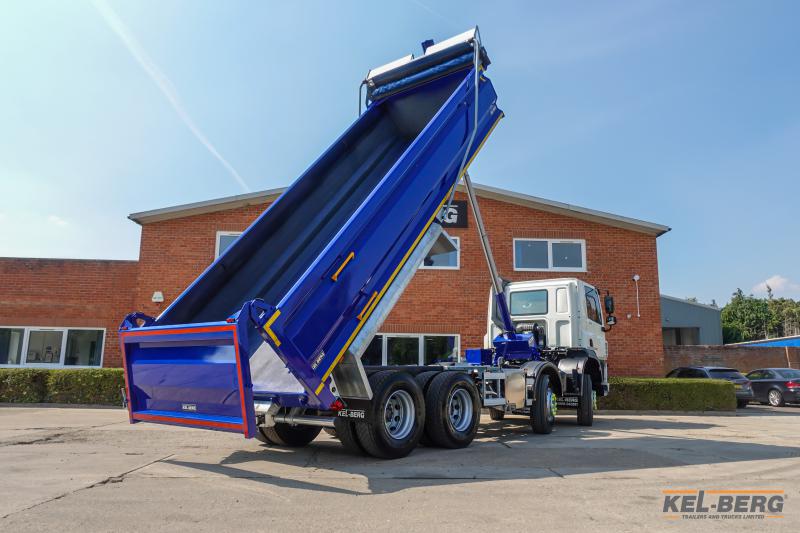

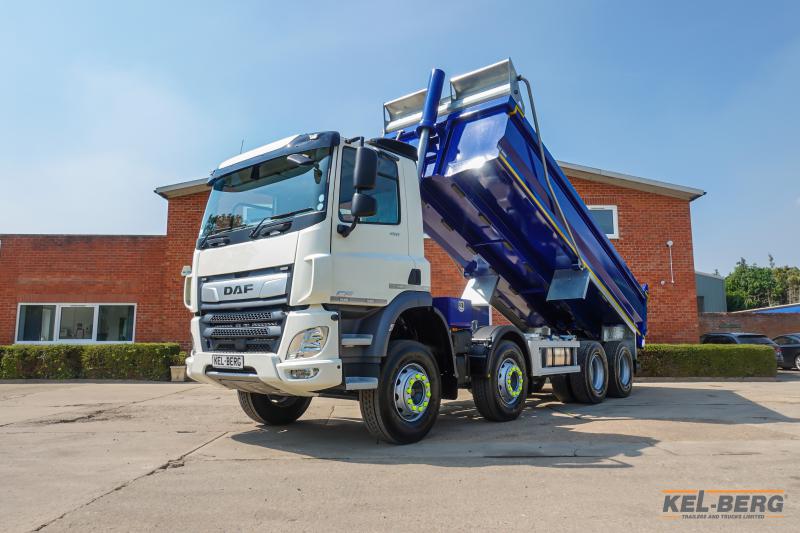

New DAF CF 440 FAD 8x4 day cab, Kel-Berg steel bodied rigid tipper

• 440bhp MX11 engine

• 340 Litre fuel tank

• 8 speed manual gearbox

• 3 years warranty

- 2 years complete

- 3rd year driveline

• Single piece manual tailgate, auto tailgate optional extra

• Easily replaced galvanised parts

• Single skin 450 Hardox body, 4mm sides & 5mm floor

• Edbro front mounted tipping gear

• Finished in two pack paint

• Optional extras; beacons, camera systems, sheets, weigh systems, double skin & many more



  • New
  • In Stock
  • New & unregistered
  • Available in your livery
  • Various finance packages options
  • Service & R&M packages available
Download spec sheet Enquire Now
Make / Model

DAF CF440 FAD 8x4 rigid construction

Wheelbase: 5700 mm
Engine size & output:

MX-11, 6 cylinder diesel engine, 10.8 litres output 435 hp, basic engine immobiliser system

Gearbox:

Manual 8 speed, manual overdrive gearbox type 8S2200, ratio 11.54-0.84.

Chassis details:

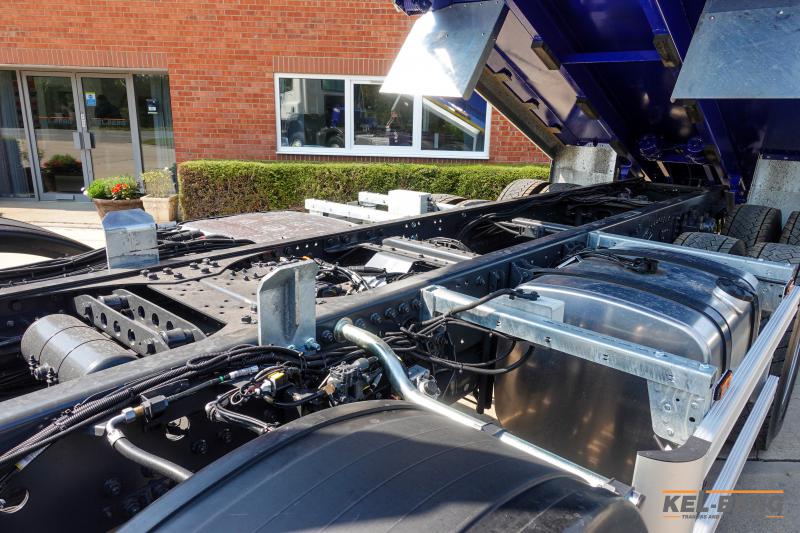

DPF and SCR split unit located at the right-hand side of the chassis. DPF behind the first front axle, SCR with discharge behind the second front axle. 340 alloy fuel tank, no spray suppression fitted. Chassis paint finished in Grey, AdBlue tank 50 litres at the left-hand side of the chassis.

Wheels & Tyres: Front axles: tyre size 295/80R22.5, wheel size 22.5 x 8.25. Rear drive axles: tyre size 295/80R22.5, wheel size 22.5 x 8.25.
Brake System:

Ventilated disc brakes at front, rear tandem axle with drum brakes. Dual circuit air system with electronic control (EBS), exhaust brake & mechanical differential lock.

Axles & Suspension:

Two front axles, type 167N. Vertical offset 20 mm. Normal parabolic leaf suspension with shock absorbers and stabiliser. Max. load 2 x 7.1 tonnes. Rear trapezium leaf suspension, double driven tandem axles type SR1132 with single reduction, Max. load 2 x 9.5 tonnes. Mechanical cross-axle and inter-axle differential locks.

Cab exterior:

Day Cab with galvanized steel bumper, tinted glass and electric window openers. Main mirrors and wide angle mirrors electrically heated, cab width 2300 mm, mechanical cab suspension. Central door lock system with exterior light check function, remote locking, LED daytime running lights, translucent external sun visor, rear cab window.

Cab interior:

High backed seat air suspended driver seat, Automatic Temperature Control (ATC) and air conditioning, basic radio/USB player. Speaker system with 2 speakers, cruise control, tinted glass & electric windows.

Body details:

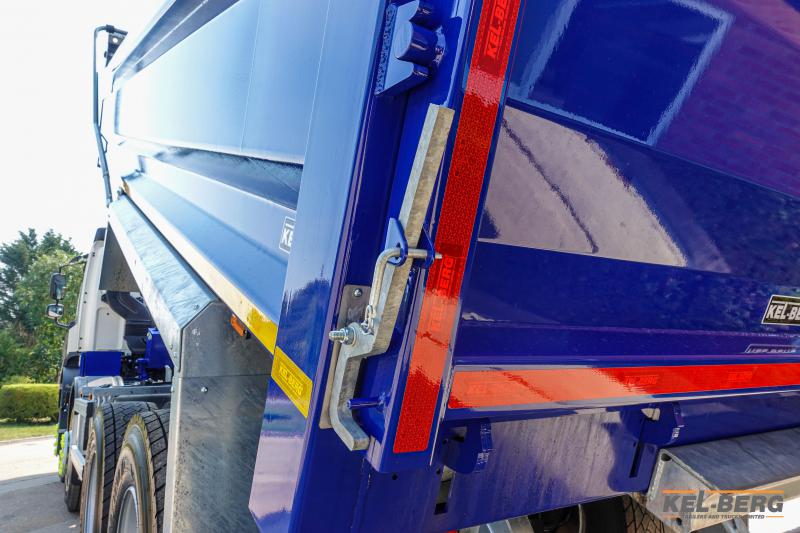

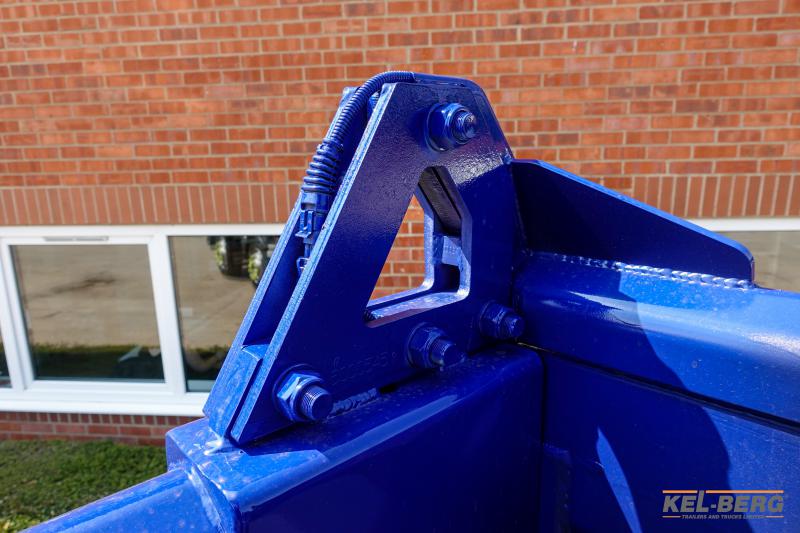

The body is constructed out of durable and hardwearing Hardox 450 material throughout. The fixed 4 mm pressed sides, folded heavy duty top rai and a single 5mm piece floor plate, combine to produce exceptional strength making this one of the most robust and durable bodies on the market.   The bulkhead has a 500 mm bolt on galvanised cab guard which incorporates space for the roller sheet bar and motor. The top swung tailgate has a four tab heavy duty bolt on locking bar 30mm, steel cover plate over bar to stop stones becoming trapped.   The mud wings, rear valances and heavy duty back light brackets are galvanised and bolted on so can be easily changed if dmage.   Truck manufacturer rear lights to be used.     Mounted below and along the bottom rail are LED side maker lights with rear LED rear marker lights fitted to the top of tailgate.

Tipping gear:

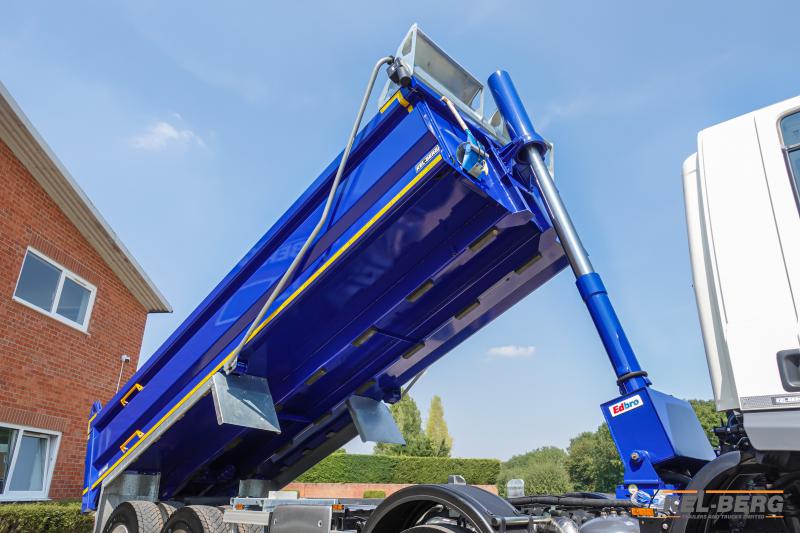

EDBRO CX15 integral oil tank, front mounted finished in body colour when painted.

Sheet system:

Transcover Front to back electric sheeting system with black mesh sheet.

Standard Items fitted:

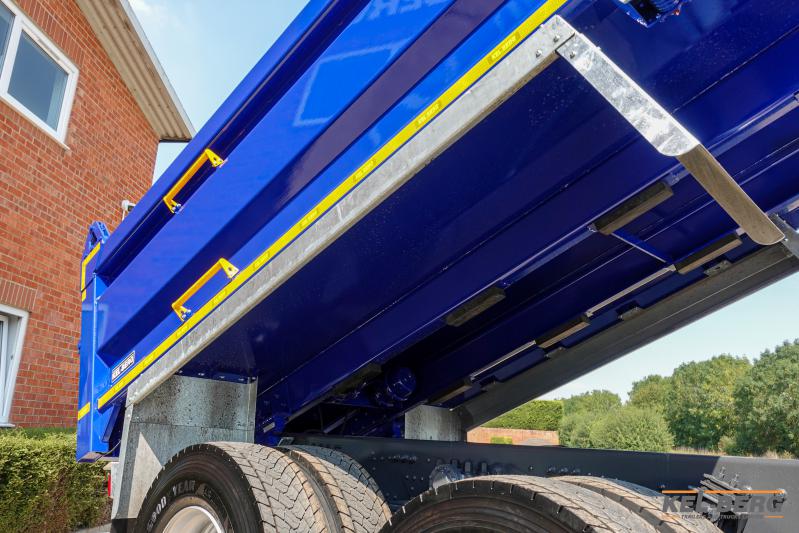

Two powder coated hand rails fitted to O/S of body near rear axle.

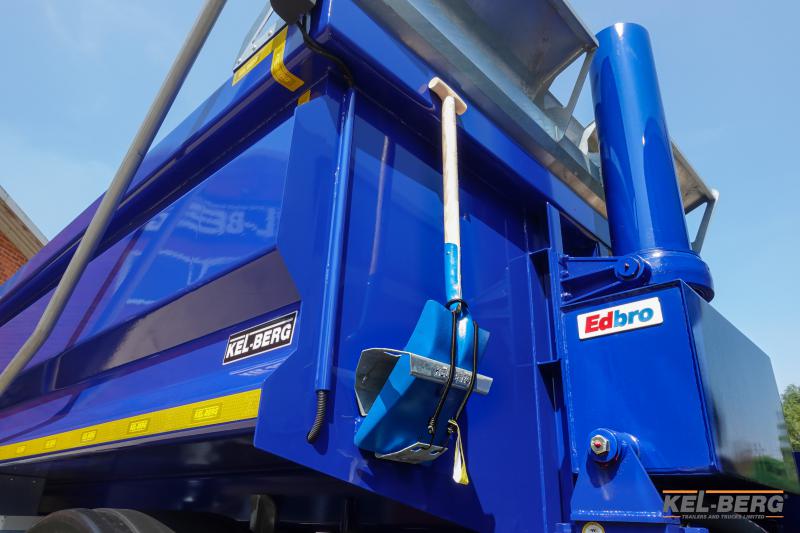

Galvanised Parts; shovel rack mounted on front bulkhead, bolt on rear push bar, rear under run bumper, galvanised bolt on sheet roller cover prepared for sheet system, galvanised single piece ladders on passenger side, galvanised folding ladder on driver side.

Body raised warning with in cab light and buzzer, conspicuity markings to be fitted to conform to current C & U regulations, side guards fitted to both sides of the vehicle on galvanised brackets.

  • Roof mounted beacon bar (choice of bulb or LED)
  • F&R amber LED strobe lights
  • Reversing cameras
  • Brigade 4 way camera system c/w 1 terabyte HD & GPS location trace
  • Cycle side scan system with audible left turn warning announcement

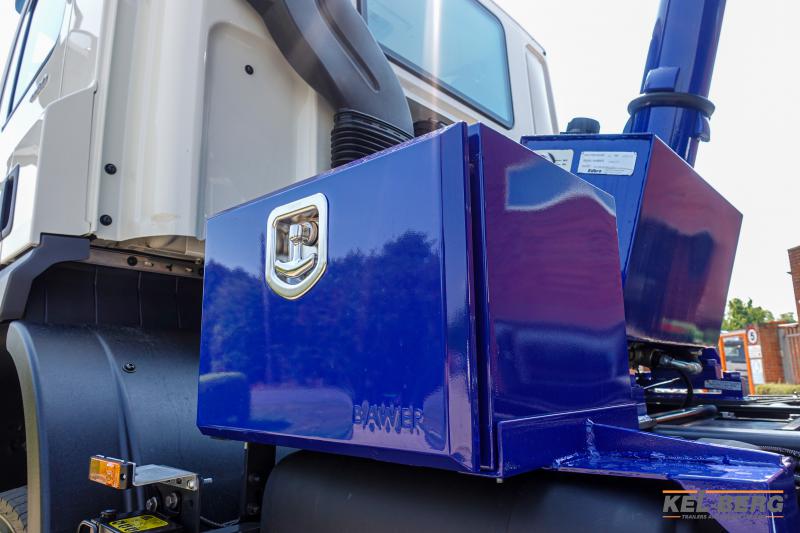

  • Under body steel tool box
  • Chapter 8 graphics
  • Sheeting systems (side to side or flip front to back)
  • Weighing systems (In cab or chassis mounted display)
  • Air operated auto rear door
  • Plus many more…..

Chassis cab: Warranty Plus 2 Year Vehicle & 3 Year Driveline - takes care of all warrantable repairs on the vehicle for two years and on the driveline for a third year together with associated breakdown coverage.
