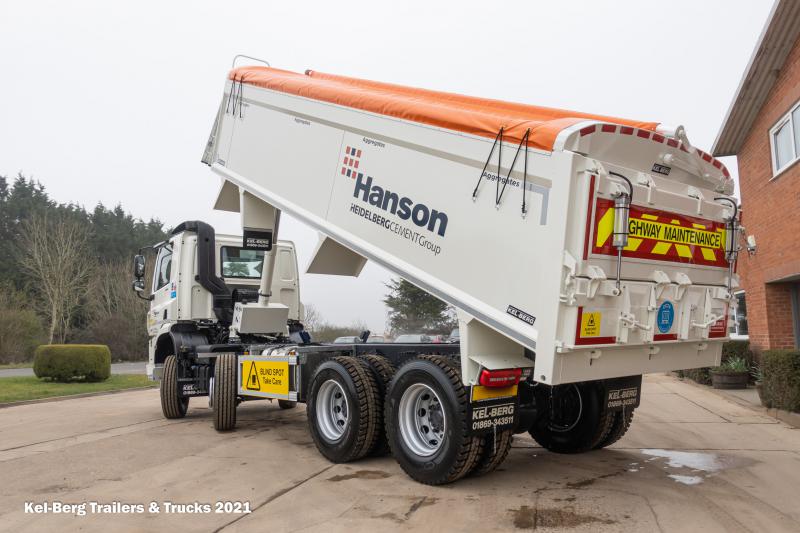

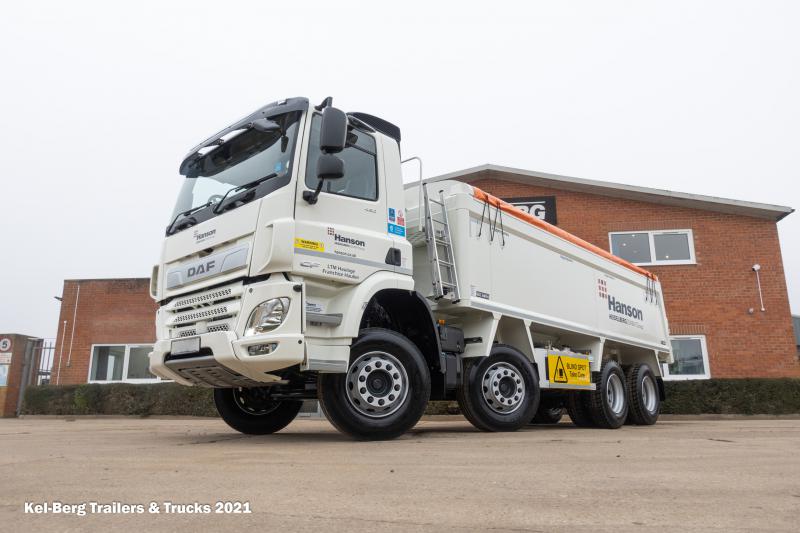

New DAF CF 440 FAD, day cab, PPG lightweight insulated tipper

• Fully insulated aluminium asphalt body

• Air operated split rear tailgate

• Rear tar hatches

• Front mounted tipping ram

• Sheeting system available

• Euro 6 440bhp MX11 engine

• Main and wide angle mirrors heated

• 340 litre alloy fuel tank

• 8 speed gearbox c/w rear diff locks

• Sleepercab c/w driver air seat

• Air con & sun visor

• Front LED day running lights

• Single bunk & night heater



  • New
  • In Stock
  • New & Unregistered
  • Available in your livery
  • Various finance packages options
  • Service & R&M packages available
Download spec sheet Enquire Now
Make / Model

DAF CF440 FAD 8x4 rigid construction

Wheelbase: 5700 mm
Engine size & output:

MX-11, 6 cylinder diesel engine, 10.8 litres output 435 hp, basic engine immobiliser system.

Gearbox:

Manual 8 speed, manual overdrive gearbox type 8S2200, ratio 11.54-0.84.

Chassis details:

DPF and SCR split unit located at the right-hand side of the chassis. DPF behind the first front axle, SCR with discharge behind the second front axle. 340 alloy fuel tank, no spray suppression fitted. Chassis paint finished in Grey, AdBlue tank 50 litres at the left-hand side of the chassis.

Wheels & Tyres: Front axles: tyre size 295/80R22.5, wheel size 22.5 x 8.25. Rear drive axles: tyre size 295/80R22.5, wheel size 22.5 x 8.25.
Brake System:

Ventilated disc brakes at front, rear tandem axle with drum brakes. Dual circuit air system with electronic control (EBS), exhaust brake & mechanical differential lock.

Axles & Suspension:

Two front axles, type 167N. Vertical offset 20 mm. Normal parabolic leaf suspension with shock absorbers and stabiliser. Max. load 2 x 7.1 tonnes. Rear trapezium leaf suspension, double driven tandem axles type SR1132 with single reduction, Max. load 2 x 9.5 tonnes. Mechanical cross-axle and inter-axle differential locks

Cab exterior:

Day Cab with galvanized steel bumper, tinted glass and electric window openers. Main mirrors and wide angle mirrors electrically heated, cab width 2300 mm, mechanical cab suspension. Central door lock system with exterior light check function, remote locking, LED daytime running lights, translucent external sun visor, rear cab window.

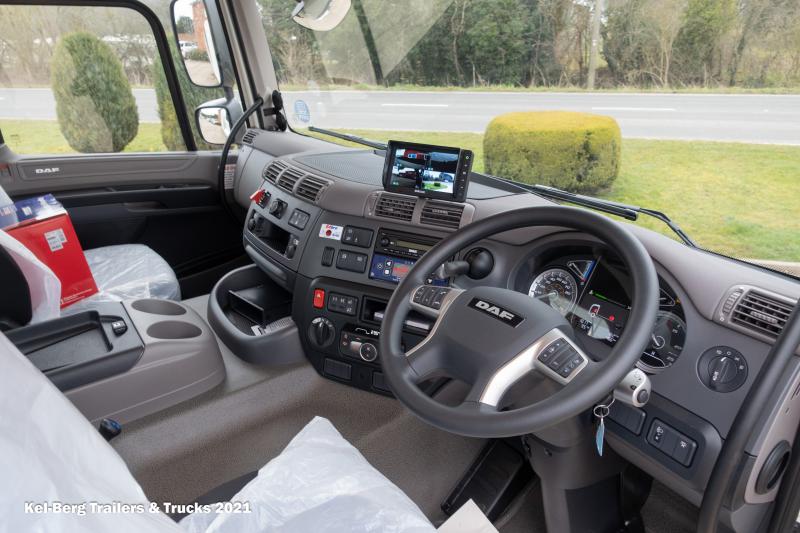

Cab interior:

High backed seat air suspended driver seat, Automatic Temperature Control (ATC) and air conditioning, basic radio/USB player. Speaker system with 2 speakers, cruise control, tinted glass & electric windows

Body details:

Internal Length: 20ft 7in. From rear of body, 3000mm x 8mm, 6mm, balance to front. No insulation to V pans, no drain holes in rear of V pans, narrow and shortened rear body mount plates, delete two fixing bolts each side. Deduct two rubber blocks from each V pan. Taken from internal face of headboard to rear most point of body back plate new lightweight specification.

Internal Width: 7ft 8in (2337mm).

Sides: Internal Depth: 4ft 0in (1219mm). Thickness 4mm hardened alloy plate. One piece extruded top rails

Headboard: Internal Depth: 4ft 0in (1219mm). Thickness 4.0mm alloy plate Steel Shovel and rack

Access Ladder: Access platform positioned 400mm down from top of body, grab rails to front of walkway level with highest point of apex to ensure three points of contact are maintained. All rungs to have tread plate angle grip. Handle on apex close to side toprail, ensure all handles which are gusseted do not have finger traps.Treadplate steps inside body, top step 400mm down in body. Access ladder to be inclined by 150mm.Bottom of ladder to be at same height as first integral cab step.

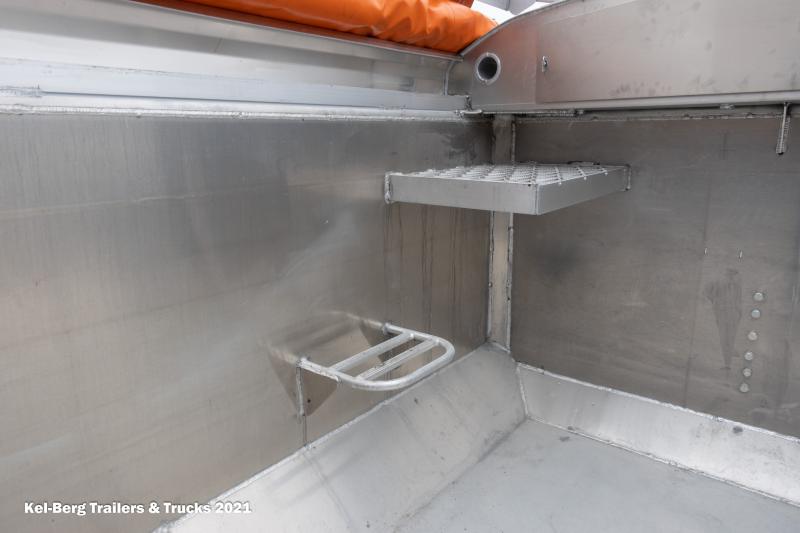

Internal Steps: Front side panel to correspond with external access. Self-draining treadplate safety steps

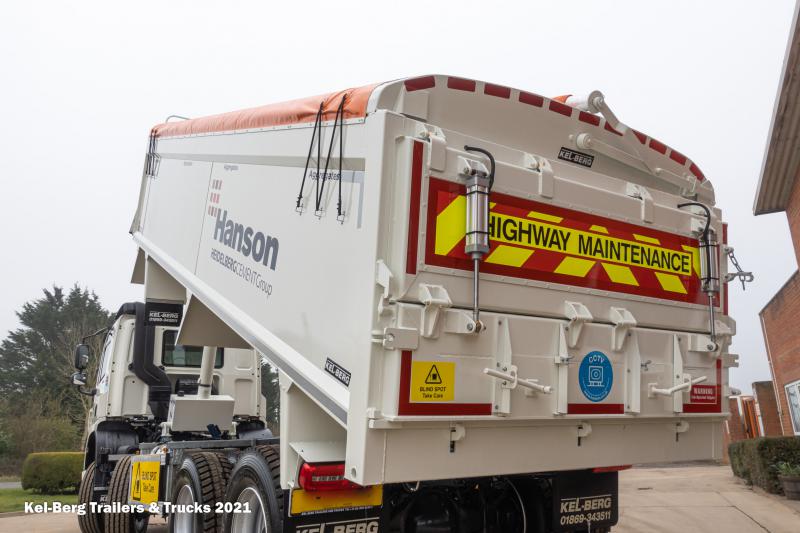

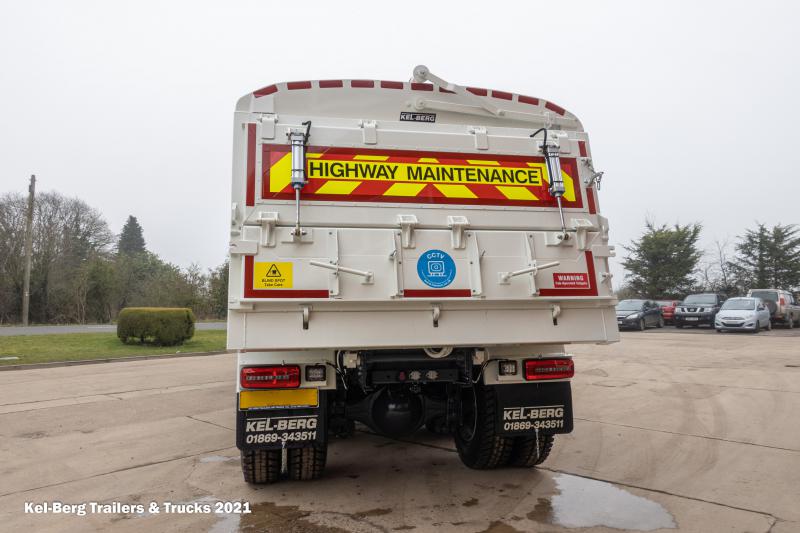

Tailgate: Internal Depth: 4ft 0in (1219mm). Thickness 4.0mm alloy plate. Horizontally split 60% top, 40% bottom. Hinged from box tie bar. PPG concealed bar air operated tailgate complete with air lifts to lower gate and air operated locking bar. Slope tailgate forward 300mm.Outside fitting gate.200mm x 8mm pressed rear crossmember.1x Red LED out marker light fitted each side and as high as possible on the rear apex. But no more than 400mm in from outside of body. Two outside fit lever operated tar hatches, complete with detachable safety screw clamps and lower door security pins

Insulation: Smoothline, 2mm rivetless side panels. 1.2mm aluminium sheet insulation to entire floor, headboard and tail door. V pans are to be air filled only.Rockwool fibre insulation content.

Tipping gear:

EDBRO CX15 integral oil tank, front mounted finished in body colour if painted.

Sheet system:

Hydroclear side to side sheet with remote control.

  • Roof mounted beacon bar (choice of bulb or LED)
  • F&R amber LED strobe lights
  • Reversing cameras
  • Brigade 4 way camera system c/w 1 terabyte HD & GPS location trace
  • Cycle side scan system with audible left turn warning announcement
  • Under body steel tool box
  • Chapter 8 graphics
  • Sheeting systems (side to side or flip front to back)
  • Weighing systems (In cab or chassis mounted display)
  • Air operated auto rear door
  • Plus many more…..

Chassis cab: Warranty Plus 2 Year Vehicle & 3 Year Driveline - takes care of all warrantable repairs on the vehicle for two years and on the driveline for a third year together with associated breakdown coverage.
